2020年3月2日（月）
Vane Pumps Cartridge Kits Assembly: 9 Steps
1. Clean all parts
2. Place the oil pan on a clean plate
3. After the rotor is placed, insert all the blades into the blade groove to the end.
4. Put a stator ring on the rotor with the blades installed
5. While rotating, insert the positioning pin to the 13: 0
6. Position with the exposed two pins and insert into the oil pan
7. Screw in four hex screws
8. Screw the parts together and put 0-rings on the parts
9. The pump core is assembled.
Vane Pumps Cartridge Kits have low noise characteristics and are designed for easy interchange and maintenance. They are sought after by the industry and have proven its tremendous power. Vane pump cartridges have low noise characteristics and are designed for easy interchange and maintenance. They are sought after by the industry and have proven its tremendous power. Zhejiang Yongling Hydraulic Machinery Co., Ltd. is a professional China manufacturer and supplier of Vane Pumps Cartridge Kits . Welcome to purchase: https://www.china-vanepump.com/product/t-series-pin-vane-pumps-with-high-pressure/t6c-t6cl-vane-pump-cartridge-kits.html
2. Place the oil pan on a clean plate
3. After the rotor is placed, insert all the blades into the blade groove to the end.
4. Put a stator ring on the rotor with the blades installed
5. While rotating, insert the positioning pin to the 13: 0
6. Position with the exposed two pins and insert into the oil pan
7. Screw in four hex screws
8. Screw the parts together and put 0-rings on the parts
9. The pump core is assembled.
Vane Pumps Cartridge Kits have low noise characteristics and are designed for easy interchange and maintenance. They are sought after by the industry and have proven its tremendous power. Vane pump cartridges have low noise characteristics and are designed for easy interchange and maintenance. They are sought after by the industry and have proven its tremendous power. Zhejiang Yongling Hydraulic Machinery Co., Ltd. is a professional China manufacturer and supplier of Vane Pumps Cartridge Kits . Welcome to purchase: https://www.china-vanepump.com/product/t-series-pin-vane-pumps-with-high-pressure/t6c-t6cl-vane-pump-cartridge-kits.html
2020年2月10日（月）
PV2R1Vane Pumps Cartridge Kits : What Are The Characteristics?
PV2R series high-pressure low-noise vane pump pump core is a high-performance product independently developed and produced by our company. It has the characteristics of advanced performance, reasonable structure, good reputation, low noise, ultra-low pulse, and stable quality. This product is well-made and can be used in high-precision, low-noise equipment. It is widely used in cutting, plastic, leather, forging, engineering machinery and other fields.
Vane Pumps Cartridge Kits have low noise characteristics and are designed for easy interchange and maintenance. They are sought after by the industry and have proven its tremendous power. Zhejiang Yongling Hydraulic Machinery is a professional China manufacturer and supplier of Vane Pumps Cartridge Kits . Welcome to purchase: https://www.china-vanepump.com/product/t-series-pin-vane-pumps-with-high-pressure/t6c-t6cl-vane-pump-cartridge-kits.html
Vane Pumps Cartridge Kits have low noise characteristics and are designed for easy interchange and maintenance. They are sought after by the industry and have proven its tremendous power. Zhejiang Yongling Hydraulic Machinery is a professional China manufacturer and supplier of Vane Pumps Cartridge Kits . Welcome to purchase: https://www.china-vanepump.com/product/t-series-pin-vane-pumps-with-high-pressure/t6c-t6cl-vane-pump-cartridge-kits.html
2020年1月19日（日）

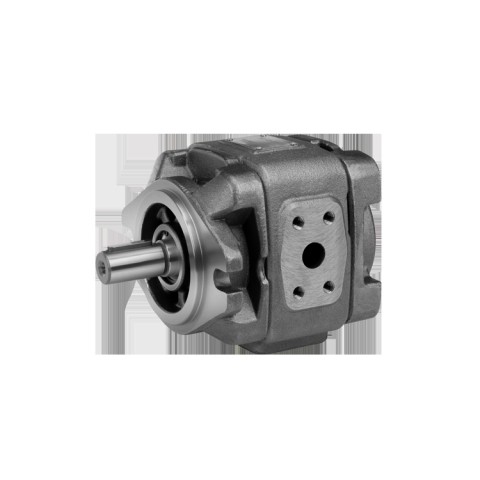

Application Fields Of Internal Gear Pumps
Internal gear pumps are widely used in many industries: food manufacturers use them to deliver thick pastes and seasonings; petrochemical industries deploy them in high-pressure metering applications and engine manufacturers use them for oil transportation. They are used as delivery pumps. Specially designed for aerospace applications. The hydraulic pump will meet SAE bolt hole requirements.
In the early 1990s, automotive engine manufacturers switched from external gear oil pumps to internal gear designs, including cycloids and two-tooth differentials. The crescent type is particularly suitable for conveying large quantities of products at low rpm. With the disappearance of the distributor-based ignition system and associated camshaft gearing, some of these pumps were driven directly from the camshaft.
Internal Gear Pumps can pump fluids of almost any viscosity, but for thicker materials, speed must usually be reduced. They are not suitable for materials containing solids because they cause premature wear. Internal gear pumps are self-priming and can be used in low NPSH applications. They usually provide smooth, continuous flow. In theory, at least they are bidirectional. They can be provided individually or in combination in the form of a tandem design.
Internal gear pumps can be manufactured for hygienic design in food, beverage and pharmaceutical services. The rotor can be suspended, supported by a single bearing or a pair of bearings outside the housing, and offers a variety of seals. These internal pump components are accessible through the cover plate for direct disinfection. Available in tightly coupled and hermetically sealed designs.
Gerotor's geometry can be designed either on stock or on customer request. The viscosity of the fluid to be pumped will affect the backlash of any given cycloid or pair of trochoids. Although it is usually an internal component that drives the outer ring, a special design can be used where the outer ring is driven. Generally, the fewer lobes, the higher the speed. The more lobes, the smoother the flow. Although a three-lobed rotor can theoretically be used, it is not practical for several reasons, so the four-lobed rotor is set as the minimum starting point.
Compared to external gear pumps, internal gear pumps generally have higher initial costs but lower wear rates, resulting in longer service life. Although advanced cycloidal gear manufacturing methods make these pumps extremely adaptable and cost-effective, the designs are more complex. One disadvantage of internal gear pumps is the overhanging load imposed on their bearings. However, this makes disinfection simple.
A common disadvantage that all gear pumps share with other positive displacement pumps, such as vane pumps, is that they cannot provide a variable flow rate at a given input speed. When this is required, a workaround is to use a drive with speed control, although this is not always a viable solution.
Finally, although rotary positive displacement pumps are capable of pumping water, their main application is in oils and viscous liquids, because friction surfaces need to be kept lubricated and it is difficult to seal very thin fluids. For most water-based applications, centrifugal or dynamic displacement pumps are the clearer choice.
As a professional China internal gear pump manufacturer and supplier. Zhejiang Yongling Hydraulic Machine Co , Ltd . produces and supplies YLH series internal gear pumps with high working pressure, high volumetric efficiency, low pressure pulsation, low noise, wide speed range, and strong anti-pollution ability. This series of products are widely used in hydraulic systems of plastic machinery, leather machinery, pressure machinery, metallurgical machinery, forklifts and other industries. They are especially suitable for energy-saving systems of servo inverter drives. Welcome to buy: https://www.china-vanepump.com/product/internal-gear-pumps
In the early 1990s, automotive engine manufacturers switched from external gear oil pumps to internal gear designs, including cycloids and two-tooth differentials. The crescent type is particularly suitable for conveying large quantities of products at low rpm. With the disappearance of the distributor-based ignition system and associated camshaft gearing, some of these pumps were driven directly from the camshaft.
Internal Gear Pumps can pump fluids of almost any viscosity, but for thicker materials, speed must usually be reduced. They are not suitable for materials containing solids because they cause premature wear. Internal gear pumps are self-priming and can be used in low NPSH applications. They usually provide smooth, continuous flow. In theory, at least they are bidirectional. They can be provided individually or in combination in the form of a tandem design.
Internal gear pumps can be manufactured for hygienic design in food, beverage and pharmaceutical services. The rotor can be suspended, supported by a single bearing or a pair of bearings outside the housing, and offers a variety of seals. These internal pump components are accessible through the cover plate for direct disinfection. Available in tightly coupled and hermetically sealed designs.
Gerotor's geometry can be designed either on stock or on customer request. The viscosity of the fluid to be pumped will affect the backlash of any given cycloid or pair of trochoids. Although it is usually an internal component that drives the outer ring, a special design can be used where the outer ring is driven. Generally, the fewer lobes, the higher the speed. The more lobes, the smoother the flow. Although a three-lobed rotor can theoretically be used, it is not practical for several reasons, so the four-lobed rotor is set as the minimum starting point.
Compared to external gear pumps, internal gear pumps generally have higher initial costs but lower wear rates, resulting in longer service life. Although advanced cycloidal gear manufacturing methods make these pumps extremely adaptable and cost-effective, the designs are more complex. One disadvantage of internal gear pumps is the overhanging load imposed on their bearings. However, this makes disinfection simple.
A common disadvantage that all gear pumps share with other positive displacement pumps, such as vane pumps, is that they cannot provide a variable flow rate at a given input speed. When this is required, a workaround is to use a drive with speed control, although this is not always a viable solution.
Finally, although rotary positive displacement pumps are capable of pumping water, their main application is in oils and viscous liquids, because friction surfaces need to be kept lubricated and it is difficult to seal very thin fluids. For most water-based applications, centrifugal or dynamic displacement pumps are the clearer choice.
As a professional China internal gear pump manufacturer and supplier. Zhejiang Yongling Hydraulic Machine Co , Ltd . produces and supplies YLH series internal gear pumps with high working pressure, high volumetric efficiency, low pressure pulsation, low noise, wide speed range, and strong anti-pollution ability. This series of products are widely used in hydraulic systems of plastic machinery, leather machinery, pressure machinery, metallurgical machinery, forklifts and other industries. They are especially suitable for energy-saving systems of servo inverter drives. Welcome to buy: https://www.china-vanepump.com/product/internal-gear-pumps
2020年1月13日（月）
Oil Pumps Cooling Method For Heat Transfer Oil Pump
The heat transfer oil pump is an ideal hot oil circulation pump or heat carrier heat transfer pump, and is an ideal accessory pump for heat exchange equipment.
The bracket of the heat transfer oil pump adopts the structure of a double-end ball bearing bracket. The front end is lubricated with oil and the back end is lubricated with grease. There is an oil guide tube in the middle to observe the sealing condition and recover the heat transfer oil at any time.
The heat transfer oil pump is provided with a cooling water jacket around the sealed cavity, and the temperature of the sealed cavity can be reduced to 200 ~ 250 ° C by cooling with cold water. For single-ended seals, flush with water. For cleaning from the outside. Wax oil with a temperature of about 100 ° C (diesel is usually not used because diesel is a finished product). It is an effective method to reduce the temperature and improve the working environment; quench the outside of the gland with cold water; in addition to reducing the temperature, it can prevent sewage The pipe is blocked.
Good use can extend the life of the heat transfer oil pump. Here are some ways to cool the heat transfer oil pump:
(1) Single-sided sealing: Rinse with water. The washing liquid is about 100 ° C minus the second-line wax oil. The pressure is 0.05 ~ 0.15Mpa higher than the inside of the sealed cavity. Quench the outside of the glands with hot water (soft water). Usually one cycle (ten months) can be used.
(2) Double-end mechanical seal: It adopts circular flushing and external cooling, and its service life is 1.5 ~ 2 times that of single-end.
(3) Metal bellows mechanical seal: compact structure, easy installation, with the same auxiliary system, the service life is 2-3 times that of ordinary seals.
(4) The friction pair is difficult to deal with (YG6 / YG8.SiC / SiC, etc.). It has a good effect on high viscosity media, a small amount of solid particles or crystalline media.
Zhejiang Yongling Hydraulic Machine Co , Ltd . is a professional China manufacturer and supplier of Oil Pumps . The oil pump works by circulating the oil under pressure to the engine's rotating bearings, sliding pistons, and camshafts. Large-capacity fluid bearings can be used to help cool the engine. Welcome to view: https://www.china-vanepump.com/product/sqp-series-vane-pumps-with-lower-noise/sqp1-vane-oil-pump-with-lower-noise.html
The bracket of the heat transfer oil pump adopts the structure of a double-end ball bearing bracket. The front end is lubricated with oil and the back end is lubricated with grease. There is an oil guide tube in the middle to observe the sealing condition and recover the heat transfer oil at any time.
The heat transfer oil pump is provided with a cooling water jacket around the sealed cavity, and the temperature of the sealed cavity can be reduced to 200 ~ 250 ° C by cooling with cold water. For single-ended seals, flush with water. For cleaning from the outside. Wax oil with a temperature of about 100 ° C (diesel is usually not used because diesel is a finished product). It is an effective method to reduce the temperature and improve the working environment; quench the outside of the gland with cold water; in addition to reducing the temperature, it can prevent sewage The pipe is blocked.
Good use can extend the life of the heat transfer oil pump. Here are some ways to cool the heat transfer oil pump:
(1) Single-sided sealing: Rinse with water. The washing liquid is about 100 ° C minus the second-line wax oil. The pressure is 0.05 ~ 0.15Mpa higher than the inside of the sealed cavity. Quench the outside of the glands with hot water (soft water). Usually one cycle (ten months) can be used.
(2) Double-end mechanical seal: It adopts circular flushing and external cooling, and its service life is 1.5 ~ 2 times that of single-end.
(3) Metal bellows mechanical seal: compact structure, easy installation, with the same auxiliary system, the service life is 2-3 times that of ordinary seals.
(4) The friction pair is difficult to deal with (YG6 / YG8.SiC / SiC, etc.). It has a good effect on high viscosity media, a small amount of solid particles or crystalline media.
Zhejiang Yongling Hydraulic Machine Co , Ltd . is a professional China manufacturer and supplier of Oil Pumps . The oil pump works by circulating the oil under pressure to the engine's rotating bearings, sliding pistons, and camshafts. Large-capacity fluid bearings can be used to help cool the engine. Welcome to view: https://www.china-vanepump.com/product/sqp-series-vane-pumps-with-lower-noise/sqp1-vane-oil-pump-with-lower-noise.html
| << | >> |
